Integrate with GitHub Enterprise Server

Support level: Community

What is GitHub Enterprise Server​

GitHub Enterprise Server is a self-hosted platform for software development within your enterprise.

-- https://docs.github.com/en/enterprise-server@latest/admin/overview/about-github-enterprise-server

Preparation​

The following placeholders are used in this guide:

  • github.company is the FQDN of your GitHub Enterprise Server installation.
  • authentik.company is the FQDN of the authentik installation.
  • GitHub Users is an application entitlement used for standard GitHub Enterprise Server users.
  • GitHub Admins is an application entitlement used for GitHub Enterprise Server administrators.
info

This documentation lists only the settings that you need to change from their default values. Be aware that any changes other than those explicitly mentioned in this guide could cause issues accessing your application.

authentik configuration​

To support the integration of GitHub Enterprise Server with authentik, you need to create an application/provider pair in authentik. If you want to use SCIM provisioning, you also need to create application entitlements and a SCIM property mapping.

Create an application and provider in authentik​

  1. Log in to authentik as an administrator and open the authentik Admin interface.

  2. Navigate to Applications > Applications and click Create with Provider to create an application and provider pair. (Alternatively you can first create a provider separately, then create the application and connect it with the provider.)

    • Application: provide a descriptive name, an optional group for the type of application, the policy engine mode, and optional UI settings.
    • Choose a Provider type: select SAML Provider as the provider type.
    • Configure the Provider: provide a name (or accept the auto-provided name), the authorization flow to use for this provider, and the following required configurations.
      • Set ACS URL to https://github.company/saml/consume.
      • Set Audience to https://github.company.
      • Set Issuer to https://github.company.
      • Set Service Provider Binding to Post.
      • Under Advanced protocol settings:
        • Select an available Signing certificate. Download this certificate because it is required later.
        • Set NameID Property Mapping to authentik default SAML Mapping: Username.
    • Configure Bindings (optional): you can create a binding (policy, group, or user) to manage the listing and access to applications on a user's My applications page. If you add the SCIM provider as a backchannel provider later, only users who can view this application are synchronized.

  3. Click Submit to save the new application and provider.

Create application entitlements​

  1. In the authentik Admin interface, open the GitHub Enterprise Server application that you created.
  2. Click the Application entitlements tab.
  3. Create two entitlements named GitHub Users and GitHub Admins.
  4. Open each entitlement and bind the users or groups that should receive it.

Create a SCIM property mapping​

  1. In the authentik Admin interface, navigate to Customization > Property Mappings and click Create.

  2. Select SCIM Provider Mapping and click Next.

  3. Create a mapping for GitHub roles:

    • Name: GitHub roles

    • Expression:

      The supported roles values are documented in GitHub Enterprise Server's SCIM API documentation.

      entitlement_names = {
          entitlement.name
          for entitlement in request.user.app_entitlements(provider.application)
      }

      roles = []
      if "GitHub Admins" in entitlement_names:
          roles.append({"value": "enterprise_owner", "primary": True})
      elif "GitHub Users" in entitlement_names:
          roles.append({"value": "user", "primary": True})

      return {
          "roles": roles,
      }

  4. Click Finish.

GitHub Enterprise Server configuration​

Create the SCIM token​

  1. Log in to GitHub Enterprise Server with the administrator account that you use for SCIM provisioning.
  2. Navigate to https://github.company/settings/tokens.
  3. Generate a new classic personal access token with the scim:enterprise scope.
  4. Copy the token. This value is used in the authentik SCIM provider.

Configure SAML​

  1. Navigate to the GitHub Enterprise Server Management Console at https://github.company:8443.
  2. Sign in as an administrator.
  3. Go to Authentication.
  4. Configure the following settings:
    • Select SAML.
    • Sign on URL: enter the SSO URL (Redirect) from the SAML provider that you created in authentik.
    • Issuer: enter the Issuer that you configured in authentik.
    • Signature method and Digest method: select the methods that match the authentik SAML provider settings.
    • Validation certificate: upload the signing certificate that you downloaded from authentik.
    • If you plan to use SCIM, select Allow creation of accounts with built-in authentication and Disable administrator demotion/promotion.
    • In the User attributes section, do not configure a different username attribute unless it returns the same value as the SCIM userName attribute.
  5. Click Save settings and wait for the changes to apply.

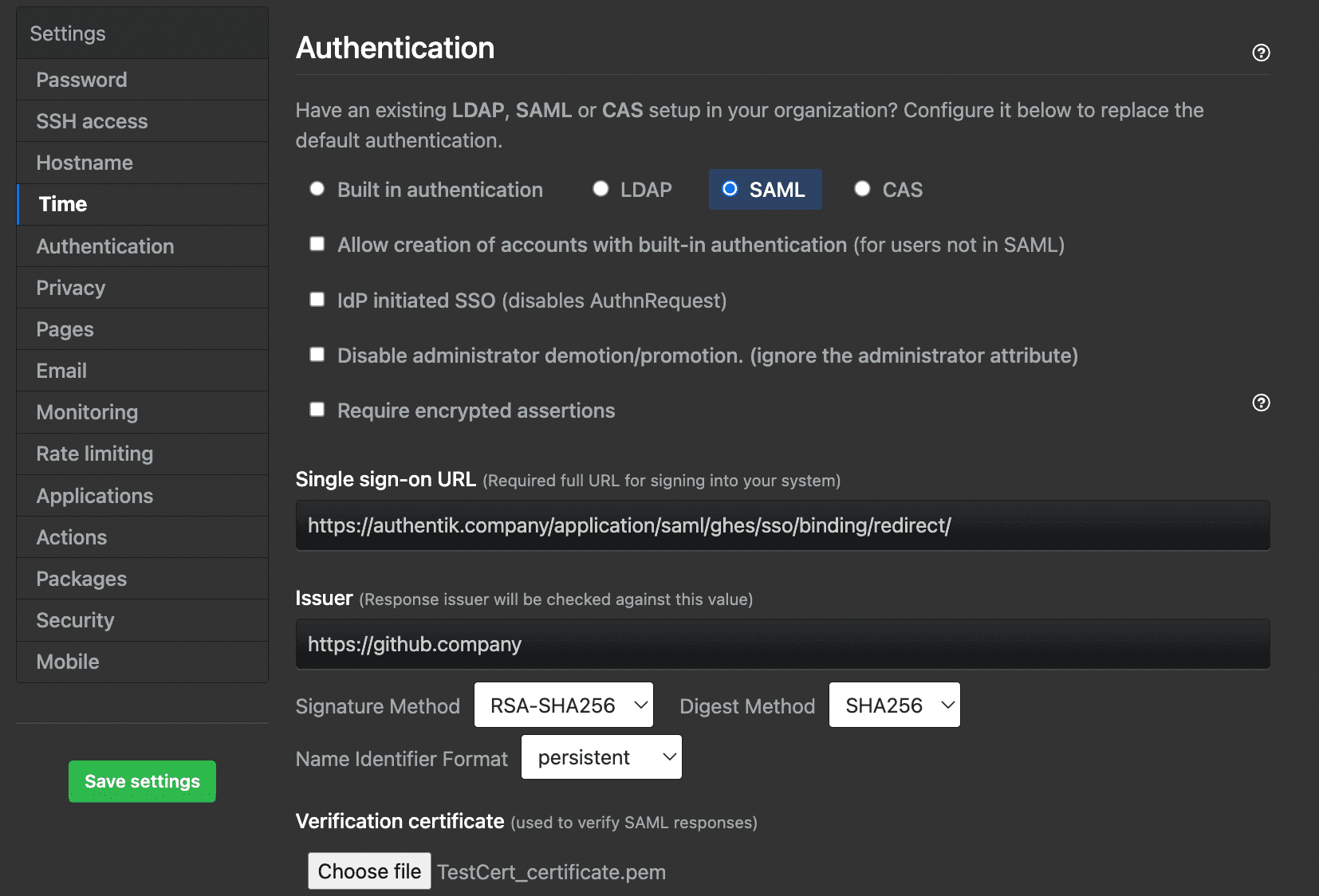

Screenshot showing populated GitHub Enterprise Server SAML settings

Enable SCIM​

  1. Log in to GitHub Enterprise Server with an administrator account.
  2. Open Enterprise settings.
  3. In the left sidebar, click Settings > Authentication security.
  4. Select Enable SCIM configuration.
  5. Click Save.

Create a SCIM provider in authentik​

  1. In the authentik Admin interface, navigate to Applications > Providers and click Create.
  2. Select SCIM Provider as the provider type and click Next.
  3. Configure the following settings:
    • Name: provide a descriptive name.
    • URL: https://github.company/api/v3/scim/v2
    • Token: paste the GitHub personal access token that you created earlier.
    • User Property Mappings: keep authentik default SCIM Mapping: User selected, then add the GitHub roles mapping that you created earlier.
    • Group Property Mappings: keep authentik default SCIM Mapping: Group selected.
  4. Click Finish.
  5. Navigate to Applications > Applications and open the GitHub Enterprise Server application.
  6. Add the SCIM provider to Backchannel Providers.
  7. Click Update.

Configuration verification​

To confirm that authentik is properly configured with GitHub Enterprise Server, assign a test user to the GitHub Users entitlement and ensure that the user can view the application in authentik.

Open the SCIM provider and click Run sync again. After the sync completes, confirm that the user is provisioned in GitHub Enterprise Server. Then, log in to GitHub Enterprise Server as the test user and confirm that GitHub redirects the user to authentik for SAML authentication.
